Portable Digital Oscilloscope for Electronic Signal Testing

Built In Signal Generator So You Test and Diagnose From One Device

You're staring at a dead circuit with no idea where the signal drops and every guess just wastes more time on the bench. The longer you troubleshoot blind the further behind your project falls and the more frustrating the whole process gets. Test a board at your workstation, diagnose equipment out in the field, or demo live signals during a class without hauling heavy gear around.

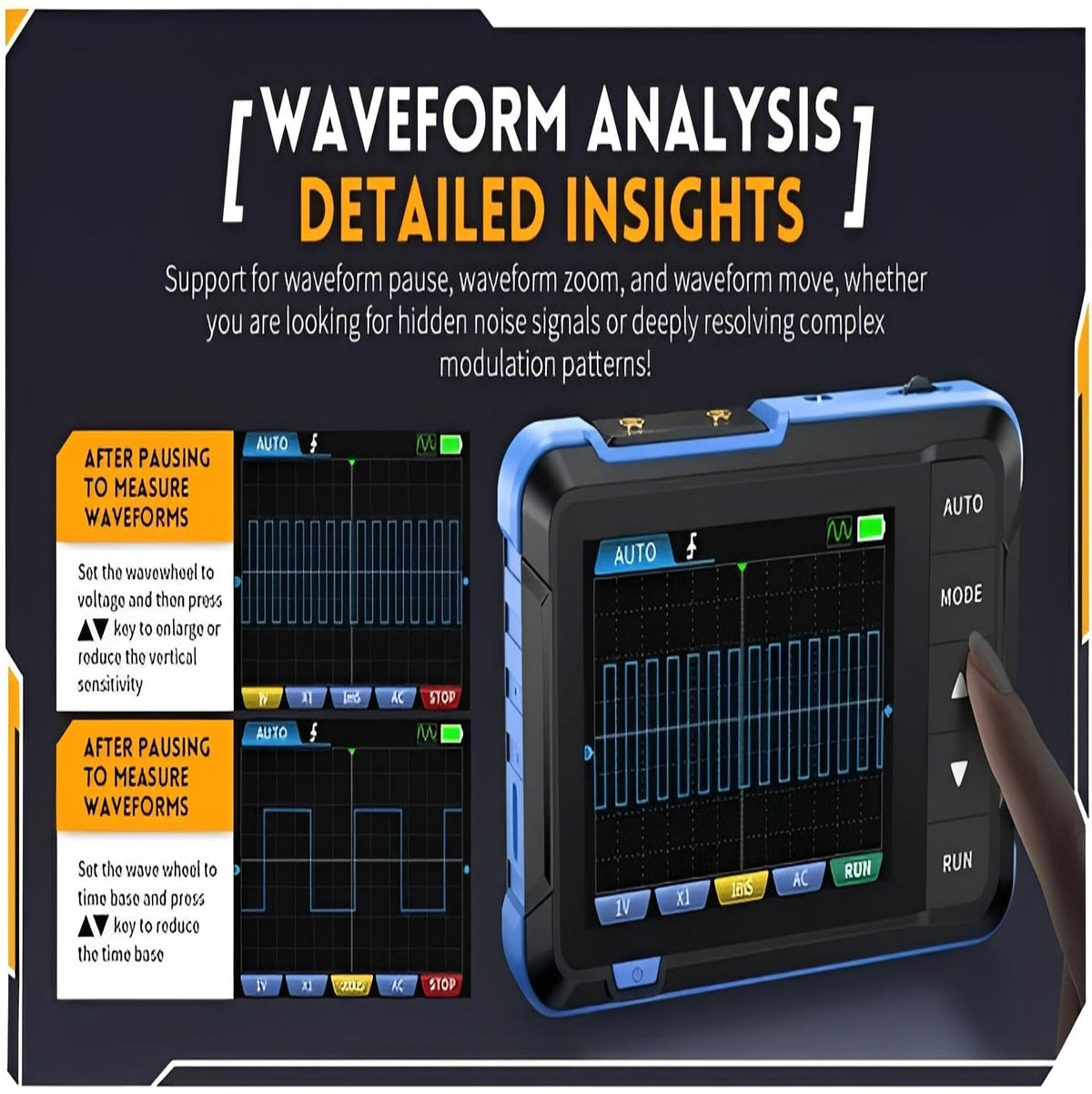

Hit the AUTO button and the scope locks onto your signal and displays it on the 2.8 inch screen without manual adjustments. Three trigger modes let you capture steady repeating waves, one-time events, or irregular signals depending on what you're chasing down. The built-in signal generator outputs test cycles so you check your setup and verify responses right from the same device without extra equipment.

The standard version samples at 5 million snapshots per second with a 1 million cycle bandwidth for general testing and everyday diagnostics. The pro version jumps to 48 million snapshots per second with a 10 million cycle bandwidth for faster, more complex signal work. Both models measure voltages safely up to 400 volts with built-in protection so you test higher power circuits without risking damage to the scope.

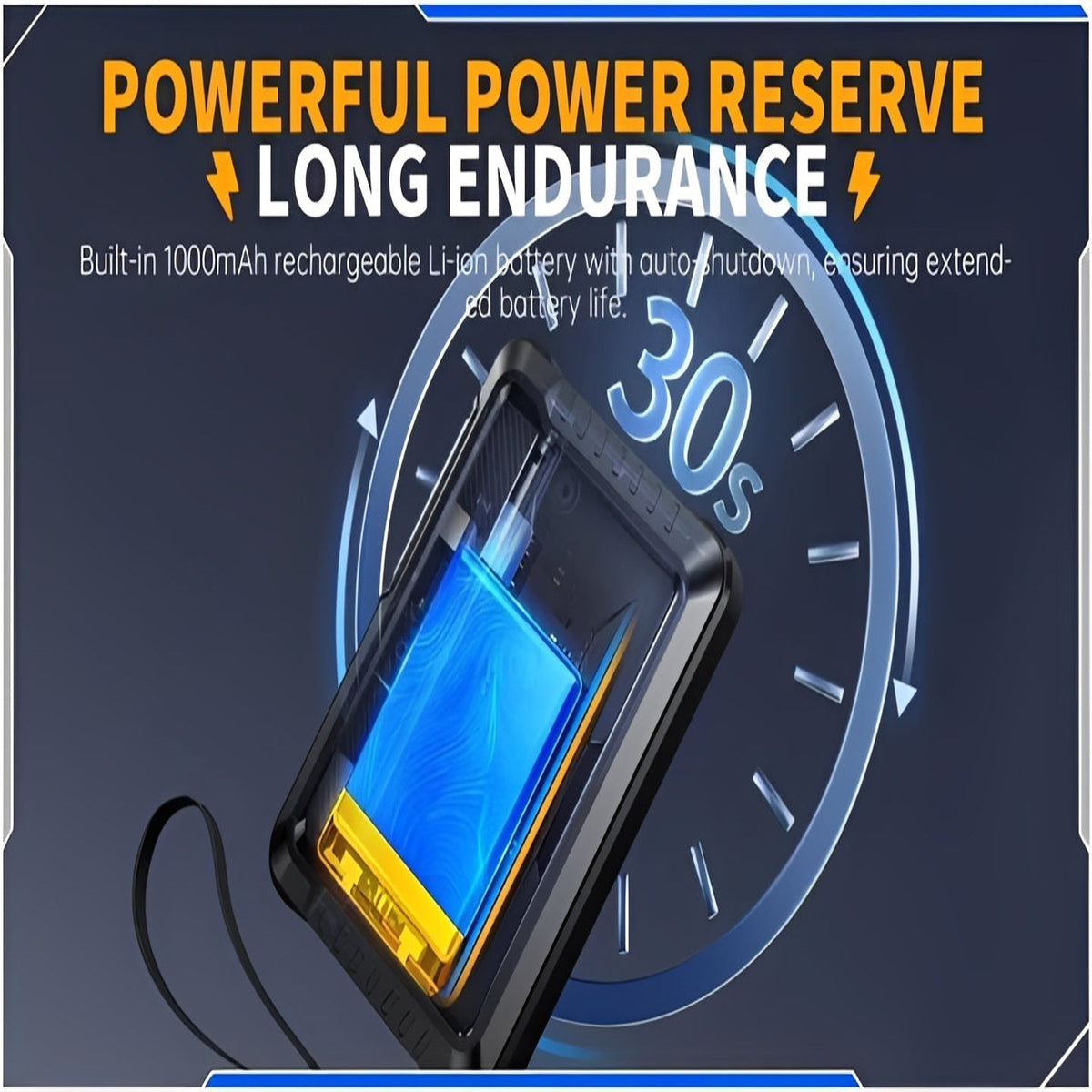

The 1000mAh battery runs for four straight hours so you work through long sessions in the field without hunting for an outlet. The compact size fits in your hand or clips to a lanyard so it goes wherever the job takes you. Plus the pro model includes a 100 million cycle passive probe and adapter in the box so advanced users get started right away without buying extras separately.

• ONE-TOUCH AUTO DETECTION: Hit the AUTO button and the scope locks onto your signal and displays it on the 2.8 inch screen with no manual setup needed.

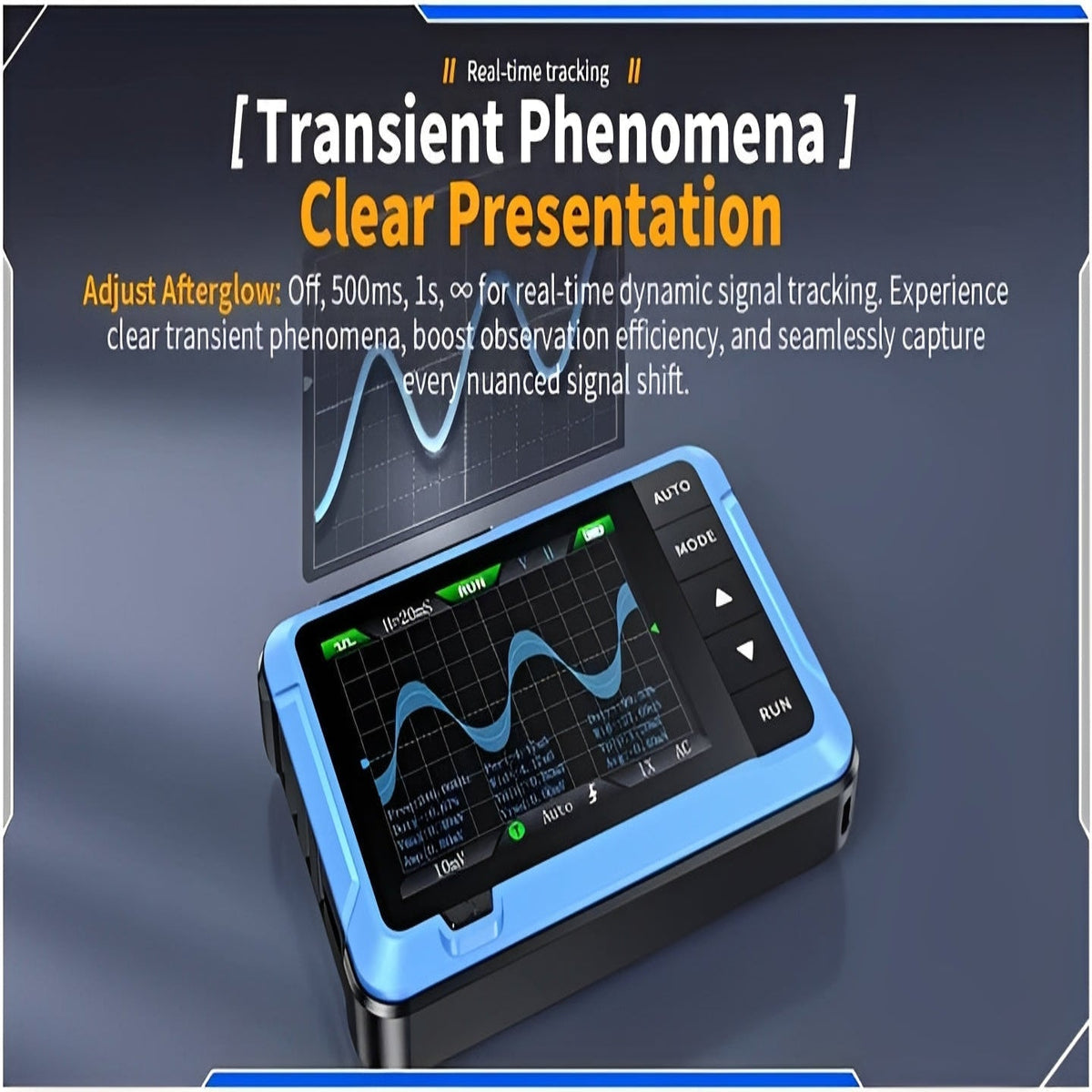

• THREE TRIGGER CAPTURE MODES: Capture steady repeating waves, one-time events, or irregular signals depending on what you need to track down.


• BUILT-IN SIGNAL GENERATOR: Outputs test cycles so you verify your setup and check responses from the same device without connecting extra equipment.


• STANDARD AND PRO VERSIONS: Choose 5 million snapshots per second for everyday diagnostics or 48 million snapshots per second for faster complex signal work.


• 400 VOLT SAFE MEASUREMENT: Built-in protection lets you test higher power circuits safely without risking damage to the scope or your setup.


• 4-HOUR PORTABLE BATTERY: The 1000mAh battery powers through long field sessions so you work without hunting for an outlet or carrying a charger.


• HANDHELD COMPACT BUILD: Fits in your hand or clips to a lanyard so it travels wherever the job takes you without adding bulk or weight.


• PRO MODEL PROBE INCLUDED: Comes with a 100 million cycle passive probe and adapter in the box so advanced users start testing right away.

Product Specifications

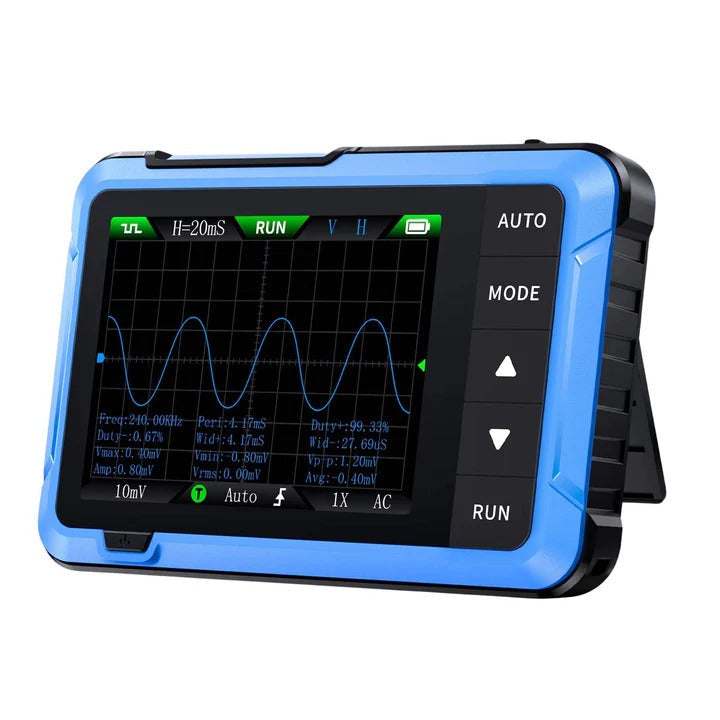

• Type: Handheld Digital Oscilloscope with Signal Generator

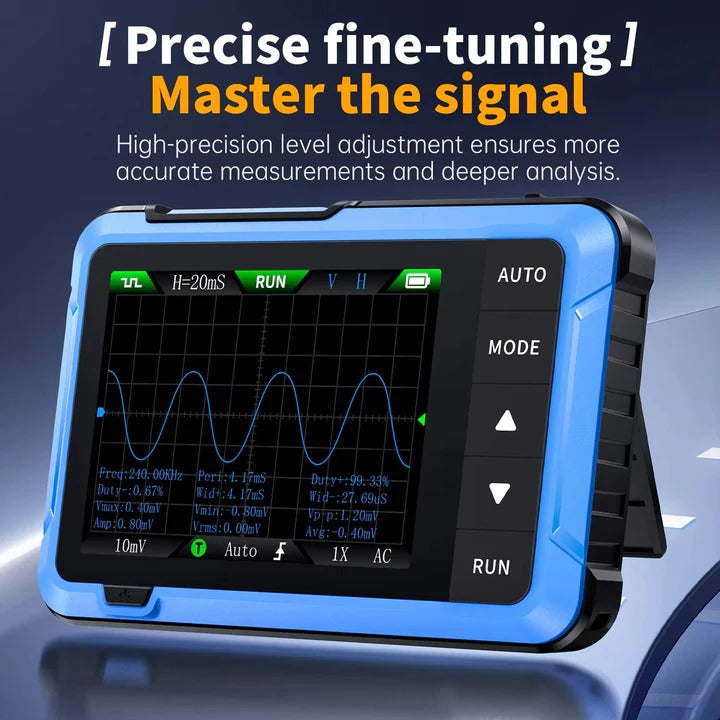

• Display: 2.8 Inch Screen
• Standard Sample Rate: 5 Million Snapshots Per Second
• Standard Bandwidth: 1 Million Cycles
• Pro Sample Rate: 48 Million Snapshots Per Second
• Pro Bandwidth: 10 Million Cycles
• Max Voltage: 400 Volts (Built-In Protection)
• Battery: 1000mAh, Up to 4 Hours
• Trigger Modes: 3 (Repeating, Single-Event, Irregular)
• Built-In Feature: Signal Generator

What's Included

• 1 x Handheld Digital Oscilloscope
• 1 x Standard Test Probe
• 1 x USB Charging Cable
• 1 x 100 Million Cycle Passive Probe and Adapter (Pro Model Only)

Frequently Asked Questions

Do I need to manually adjust the settings to read a signal?
No, the AUTO button locks onto your signal automatically and displays it on the 2.8 inch screen without any manual adjustments needed.

What's the difference between the standard and pro version?
The standard samples at 5 million snapshots per second with a 1 million cycle bandwidth for everyday diagnostics while the pro jumps to 48 million snapshots per second with a 10 million cycle bandwidth for faster complex work.

Can I test higher voltage circuits safely?
Both models measure voltages safely up to 400 volts with built-in protection so you test higher power circuits without risking damage to the scope.

How long does the battery last in the field?
The 1000mAh battery runs for up to four straight hours so you work through long sessions without needing to stop and find an outlet.
